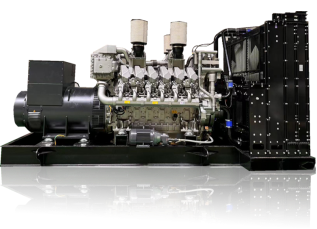

YLGF-800SCS

Model

YLGF-800SCS

Wiring Method

three-phase four-wire

Power（KW）

800/880KW

Voltage regulation range

≤+0.5%

Capacity(KVA)

1000/1100KVA

Steady-state voltage adjustment rate

≤+0.1%

Voltage (V)

230/400V

Steady-state frequency adjustment range

≤+20%

Frequency(Hz)

50HZ

Sudden load voltage adjustment

≤+8%

Current output（A)

30.4

Sudden load adjustment time

≤6S

Power factor

0.8

Abrupt load frequency deviation

≤+10%

Unit size (mm)

5200*2200*2500 MM

Unit net weight  (kg)

7010KG

ENGINE PARAMETERS

Brand

SDEC POWER

Rated speed

1500r/min

Model

6KTAA25-G321

Fuel specification, grade

International 0# diesel

Engine power（KW)

880/968KW

Lubricating oil specifications, grades

CF-40 15W

Fuel system

close coupled pump

Displacement

25.2 L

Cylinders

6

Maximum lubricating oil temperature

105℃

Bore * Stroke(mm)

170*185

Total lubricating oil capacity

75 L

Compress Ratio

14.5:1

Maximum exhaust temperature

450℃

Aspiration

Natural aspiration

Intake resistance

10Kpa

Speed regulating system

Electronic speed

Starting voltage

12V

Fuel consumption rate

-

Full load fuel consumption

212.8 L/h

ALTERNATOR PARAMETERS

Manufacture factory

Quanyi(First All)

Model

QYK404C2

Generator power(KW)

800/880KW

Alternator capacity(KVA)

1000/1100KVA

Exciting mode

Brushless

Elevation

≤1000m

Voltage regulating mode

AVR

Temperature

≤40℃

Protection Class

IP23

Insulation/temperature rise rating

H/H

Generator efficiency

93.20%

Surge capability

1.5 times 2 minutes

Cooling mode

Self-cooled

short-circuit capacity

3 times 2 seconds

Rotor type

salient pole type

Voice Coil Material

100% copper
