FEATURES
The HW-18W is compact design allows it to be used in various narrow spaces such as indoors, orchards, and greenhouses. It is suitable for agricultural planting, landscaping, orchard trenching and fertilizing, small earth and stone works, basement and indoor construction, concrete crushing, laying of water pipelines, and gardening cultivation in various operating environments.
SPECIFICATIONS
Parameters | Unit | Datas |
Total Weight | kG | 1100 |
Engine Brand | Kubota | |
Engine model | D722 | |
Engine power | kW | 10.3 |
Bucket capacity | m3 | 0.035 |

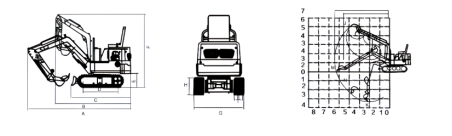

Maximum digging depth K | mm | 1850 |
Maximum digging radius N | mm | 3280 |
Maximum excavation height F | mm | 2740 |
Maximum dump height M | mm | 2400 |
Work device form | Backhoe | |
Hydraulic pump | Imported Hydraulic System | |
Multi-way valve | Load Sensing Valve | |
Overall size | mm | 2200*1100*2200 |
Wheel base D | mm | 420 |
Track ground length C | mm | 1150 |
Minimum ground clearance | mm | 80 |
Chassis width G | mm | 1100 |
Crawler width I | mm | 180 |
Transport length A | mm | 2200 |
Radius of gyration | mm | 1100 |
※ The technical information may vary by the update policy, the changes will be without prior notice.
