FEATURES
HW-23W small excavator is suitable for agricultural planting, landscaping, orchard trenching and fertilization, small earthwork engineering, municipal engineering, road repair, basement and indoor construction, concrete crushing, buried cables, laying of water pipes,
garden cultivation and cleaning of rivers and ditches. Various operating environments such as silt engineering.It has the functions of digging, crushing, hook clearing, drilling, and bulldozing. The accessories can be replaced quickly.
SPECIFICATIONS
Parameters | Unit | Datas |
Total Weight | kG | 2300 |
Overall Size | mm | 3300*1110*2360 |
Dozer blade width | mm | 1110 |
Dozer blade height | mm | 270 |
Track center distance | mm | 883 |

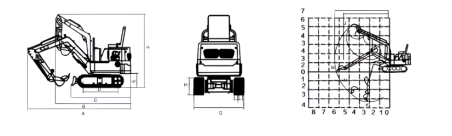

Maximum digging height F | mm | 3310 |
Maximum unloading height M | mm | 2370 |
Maximum digging depth K | mm | 2120 |
Maximum vertical arm digging depth N | mm | 1535 |
Maximum digging distance | mm | 3640 |
Bucket capacity | m3 | 0.04 |
Engine Brand | Kubota | |
Engine model | D902 | |
Engine power | kW | 11.8 |
Swing angle | ° | 55 |
Gradeability | ° | 58（30） |
Bucket digging force | KN | 13.8 |
R Hydraulic system: Well-known brand hydraulic pumps, distributors and rotary travel motors are perfectly matched and coordinated in operation
R Power system: Kunota D902 engine ensures strong power
R Rubber track: Engineering rubber tracks
RTailless design: The compact body and tailless design further reduce the minimum turning radius of the machine and make the machine more flexible when working in a small space.
※ The technical information may vary by the update policy, the changes will be without prior notice.
