FDM798T-40G

FEATURES

① FDM798T-40G container tilter for container handling operations, can be lifted quickly 20 feet high standard weight container up to 3900mm, can be rotated clockwise and counterclockwise 360 degrees, fast quickly remove the materials in the box, such as sand, coal, fertilizer, cement, soybeans, wheat and other loose materials.The machine is equipped with heavy container transfer and low-layer stacking, container bulk handling and general cargo forks Loading and transferring functions are efficient equipment for container operations such as logistics, ports and warehousing.

② The FDM798T-40G container tilter is equipped with the first three-rotation motor + heavy-duty side shift in China.

③ The equipment greatly improves the rotating torque of the equipment and the working efficiency of the forklift container.

④ Independently designed articulated frame and eight-link working device, easy to operate, stable and reliable performance.

⑤ Realized the mechanization of container unloading, greatly improved the unloading efficiency, energy saving and time saving for enterprises Bring benefits.

⑥ Main configuration: Cummnins Power, LANDAI special drive axle, ADVANCE hydraulic transmission,Japan KAWASAKI rotary hydraulic motor, American PARKER variable piston pump, PARKER distribution Valves, PARKER hydraulic lines, 29.5-29 tires.

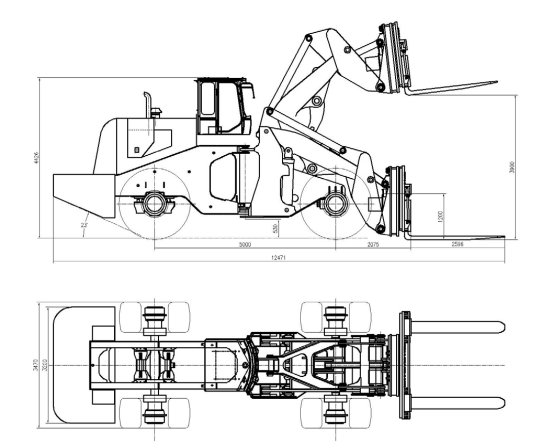

OVERALL
