47m Truck Mounted Concrete Pump Used Refurbish ZLJ5336THB 47X-5RZ

PART I. INTRODUCTION OF KAMUJA

USTED TRUCK-MOUNTED CONCRETE PUMP 47M & REFURBISH SERIVE ZLJ5336THB 47X-5RZ

Hunan Kamuja Machinery & Equipment Co.,Ltd is founded by a group of passionate professionals who have an average of more than 10 years working experience in the construction machinery industry and established close relationship with numerous clients from all over the world.

We are a compnay that is committed to inspiring to create value through our products and service to customer and providing thorough solutions for both brandnew and used machines in the Construction, also Industrial logistics sectors.

We offer comprehensive service for the used construction machineries, such as Pre- Order Inspection, all kinds of reburbishing services that meet different customer’s requirements, Pre-Delivery Inspection, Spare Parts, On-line Traning & Instruction

Service, Optional On-site Service.

With the commitment to provide quality and reliable new machines, KAMUJA carefully select the vendors and work closely with those who have international background and reputation. KAMUJA brand new forklift and generators are flexible for customization according to our partners and customers requests.

We are an authorized ventor of one of the leading Chinese tower crane manufacturers who started the first tower crane production since 1958, and enjoyed worldwide reputation. Together with our advanced factory, KAMUJA team will provide strong supports to the customers to achieve safe and

cost-effective construction for their projects.

Qualification




PART II. CONCRETE MACHINERY EXPERTISE

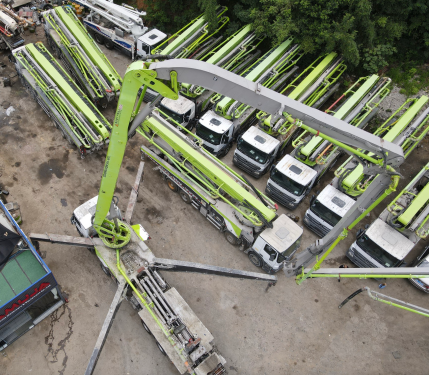

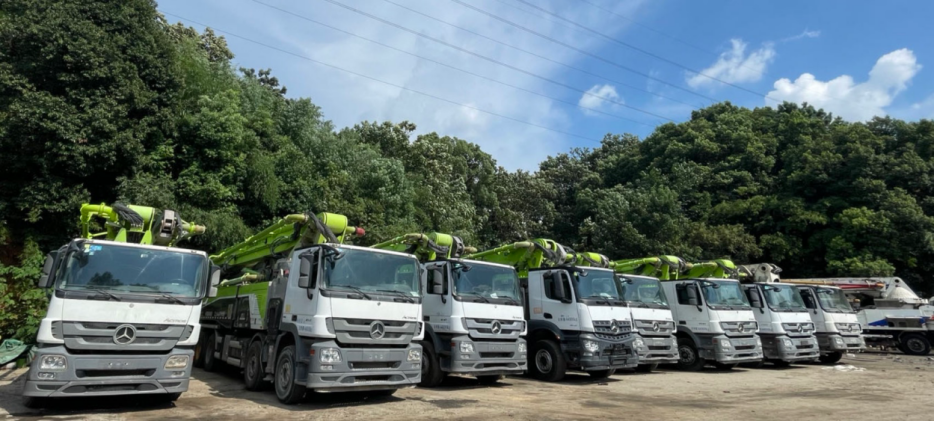

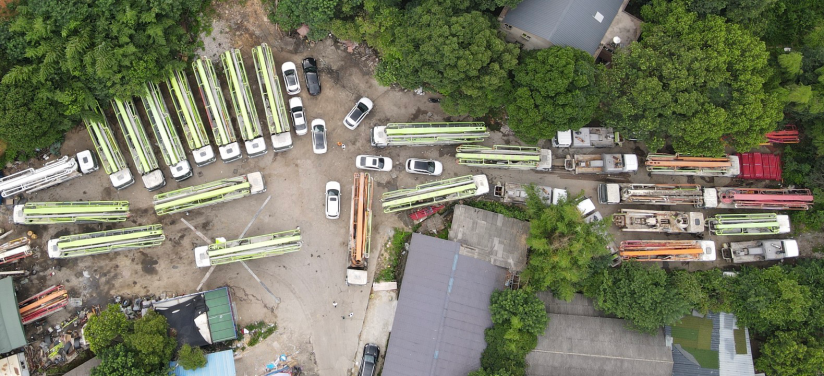

★ KAMUJA has a specialized team and warehouse to refurbish China Made Concrete Machinery, among the

most famous brand, Zoomlion and Sany. We normally have in stock under own property various models with different year of manufacturing, ready for sale as origin all statues or furnished.

★ Most Commercial Models and Configurations:

- 37m/38m Zoomlion w/. ISUZU, Sinotruk Chassis, EURO III

- 40m Zoomlion w/. FAW Chasis, EURO V

- 43m/47m Zoomlion w/. FAW, ISUZU, Mercedez Benz Chasis, EURO III, V.

- 49m Zoomlion w/. Merdedez Benz Chasis, Sany w/. own brand chassis, EURO V

- 52m Zoomlion w/. Merdedez Benz Chasis, Sany w/. own brand chassis, EURO III, V

- 56m Zoomlion w/. Scania, Merdedez Benz Chasis, Sany w/. own brand chassis, EURO III, V

- 62m/63m Zoomlion and Sany w/. Scania, Mercedez Benz chassis, EURO III,IV

★Year of manufacturer: 2011-2021

★ Refurbish Class: Premium, Medium, Standard.

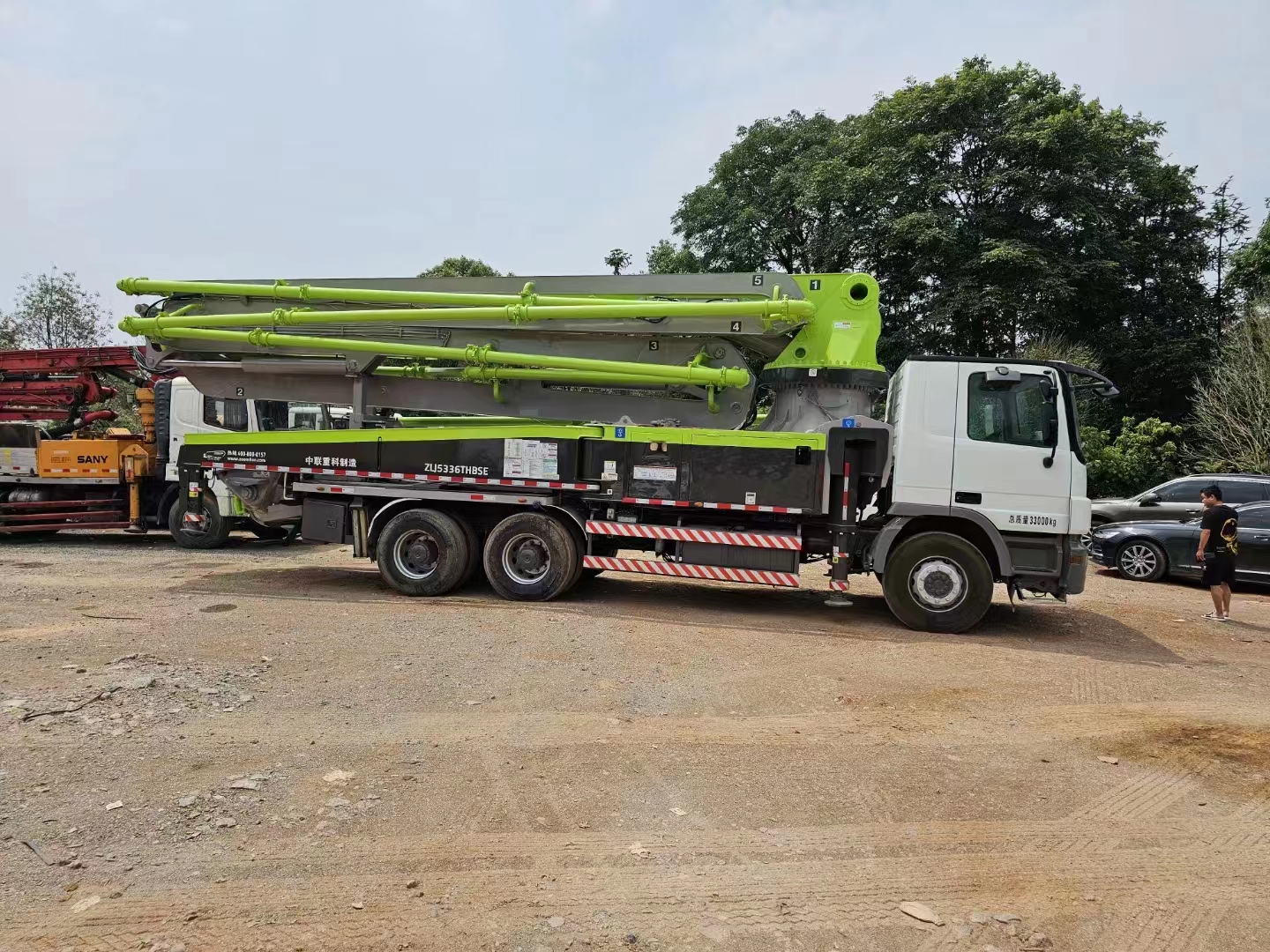

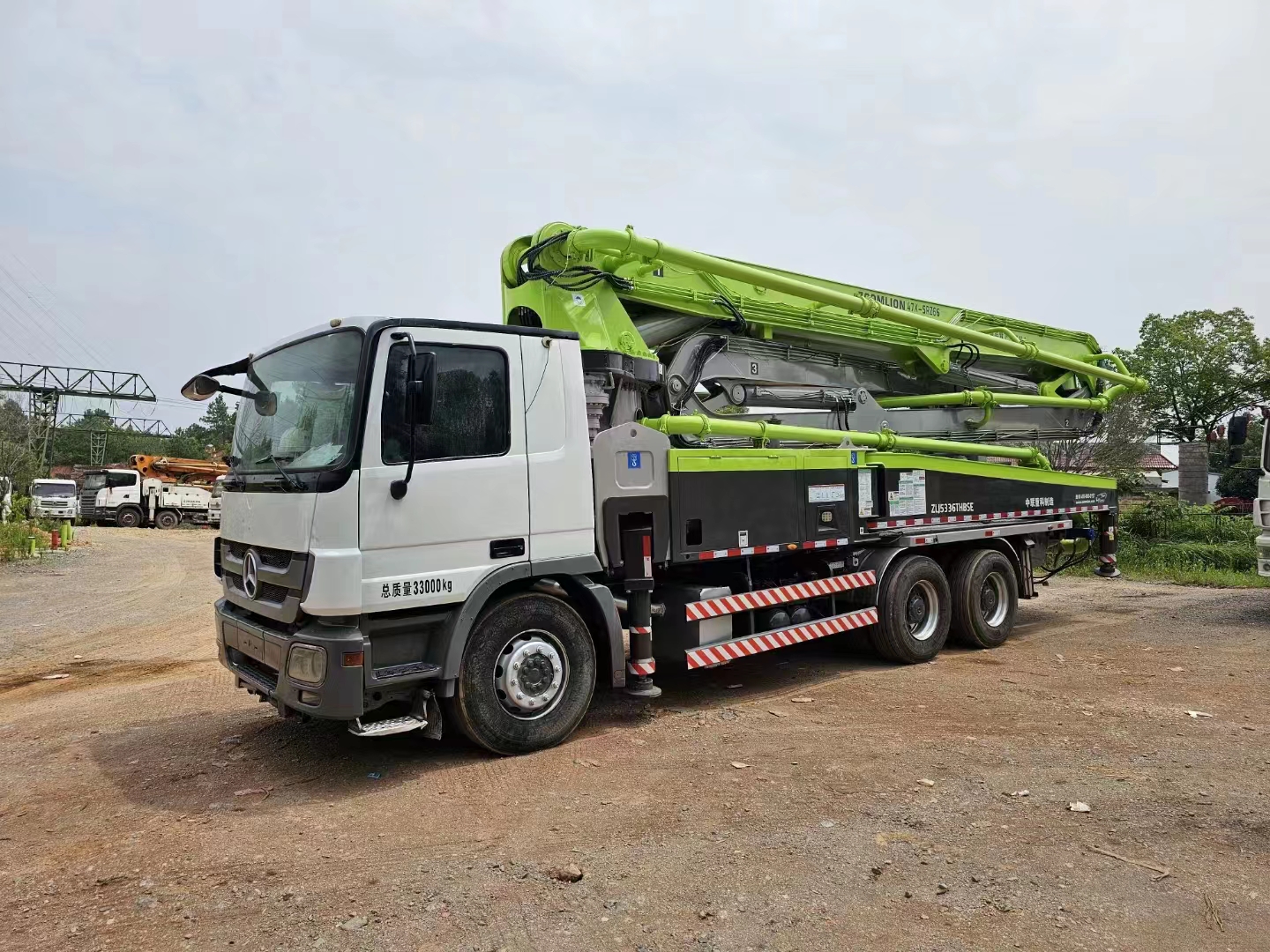

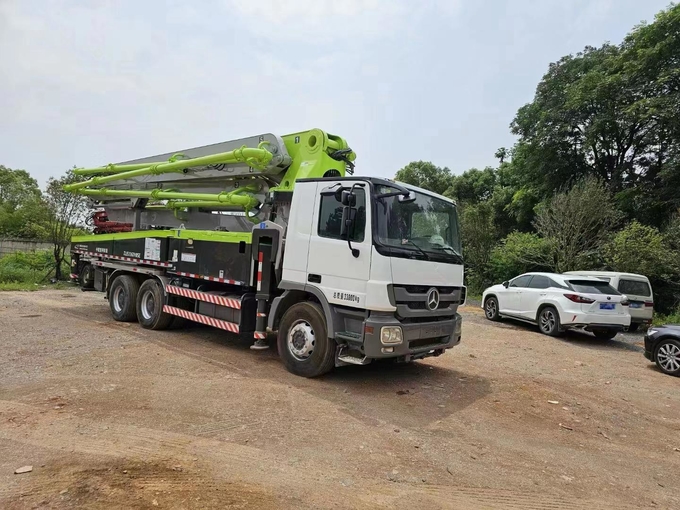

PART V. REAL PHOTOS



PART IV. SPECIFICATIONS


ModelZLJ5336THB 47X-5RZ
Pumping systemMax. Theor. outputm3/h180
Max. Theor. concrete output PressureMPa9
Rated working pressureMPa35
Pumping frequencymin-127
Hopper capacityL600
Filling heightmm1540
Hydraulic system type
Close loop
Distribution valve
S valve
Oil cylinder dia.×strokemmφ130×2100
Concrete cylinder dia.×strokemmφ260×2100
Hydraulic oil cooling
Air cooling
Recommended concrete slumpcm12~23
Max. aggregate dimensionmm40
Placing boomStructure type
47X-5RZ
Placing depthm47
Horizontal distancem42.7
Placing depthm33.4
Slewing angle
±270°
Boom number
5
The length of boom sectionmm9380/8130/7930/8610/8950
Sections folding angle
90°/180°/180°/250°/180°
Pipe diametermm125
End hose lengthmm3000
Min. height of opening placing boommm9700
Outriggers span (front×rear×side)mm9230×9680×9385
Chassis and the whole machineChassis model
Actros3341 6×4
Wheelbasemm4500+1350
Engine type
OM501LA
Engine powerkW/(r/min)300/1800
Engine momentN.m/(r/min)2000/1080
Maximum displacementcc11946
Oil tank cubageL400
Tail gas exhaust standard
Euro. Ⅲ
Total weightkg33000
Overall dimensionsmm12060×2500×4000
OthersLubrication mode
Automatic lubrication
Oil tank volumeL800
Control mode
Manual+remote control
Maximum water pressureMPa7
Water tank volumeL400
Pipe cleaning mode
Water cleaning/dry cleaning


Working scope fig.
