ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

PART I. INTRODUCTION OF KAMUJA

USTED TRUCK-MOUNTED CONCRETE PUMP 38M & REFURBISH SERIVE ZLJ5230THBTE 38X-5RZ

Hunan Kamuja Machinery & Equipment Co.,Ltd is founded by a group of passionate professionals who have an average of more than 10 years working experience in the construction machinery industry and established close relationship with numerous clients from all over the world.

We are a compnay that is committed to inspiring to create value through our products and service to customer and providing thorough solutions for both brandnew and used machines in the Construction, also Industrial logistics sectors.

We offer comprehensive service for the used construction machineries, such as Pre- Order Inspection, all kinds of reburbishing services that meet different customer’s requirements, Pre-Delivery Inspection, Spare Parts, On-line Traning & Instruction

Service, Optional On-site Service.

With the commitment to provide quality and reliable new machines, KAMUJA carefully select the vendors and work closely with those who have international background and reputation. KAMUJA brand new forklift and generators are flexible for customization according to our partners and customers requests.

We are an authorized ventor of one of the leading Chinese tower crane manufacturers who started the first tower crane production since 1958, and enjoyed worldwide reputation. Together with our advanced factory, KAMUJA team will provide strong supports to the customers to achieve safe and

cost-effective construction for their projects.

Qualification




PART II. CONCRETE MACHINERY EXPERTISE

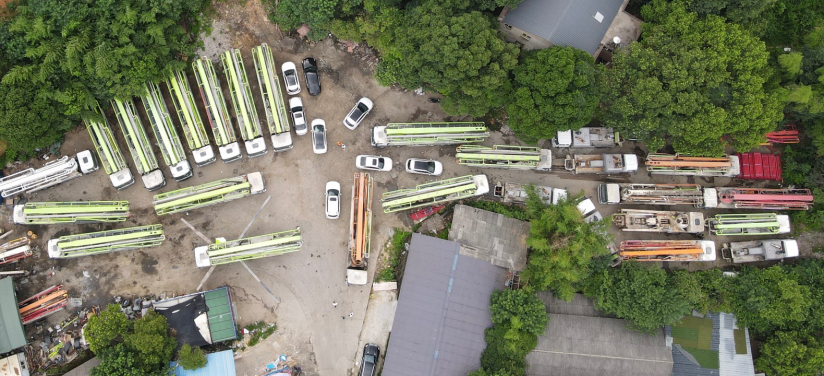

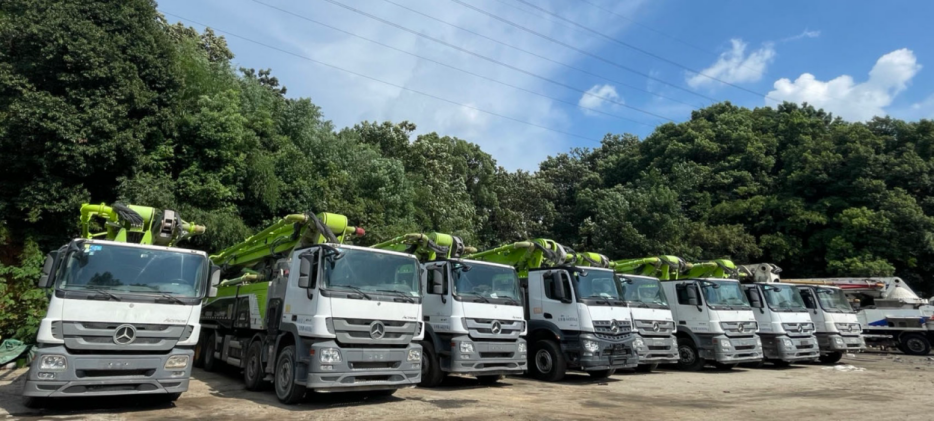

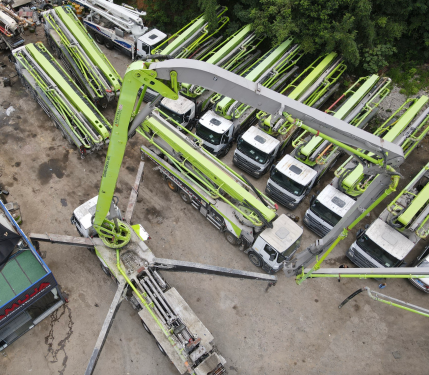

★ KAMUJA has a specialized team and warehouse to refurbish China Made Concrete Machinery, among the most famous brand, Zoomlion and Sany. We normally have in stock under own property various models with different year of manufacturing, ready for sale as origin all statues or furnished.

★ Most Commercial Models and Configurations:

- 37m/38m Zoomlion w/. ISUZU, Sinotruk Chassis, EURO III

- 40m Zoomlion w/. FAW Chasis, EURO V

- 43m/47m Zoomlion w/. FAW, ISUZU, Mercedez Benz Chasis, EURO III, V.

- 49m Zoomlion w/. Merdedez Benz Chasis, Sany w/. own brand chassis, EURO V

- 52m Zoomlion w/. Merdedez Benz Chasis, Sany w/. own brand chassis, EURO III, V

- 56m Zoomlion w/. Scania, Merdedez Benz Chasis, Sany w/. own brand chassis, EURO III, V

- 62m/63m Zoomlion and Sany w/. Scania, Mercedez Benz chassis, EURO III,IV

★Year of manufacturer: 2011-2021

★ Refurbish Class: Premium, Medium, Standard.

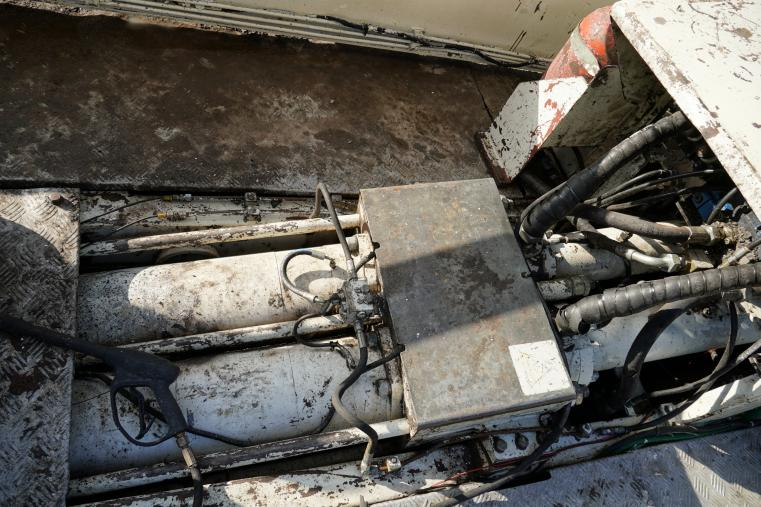

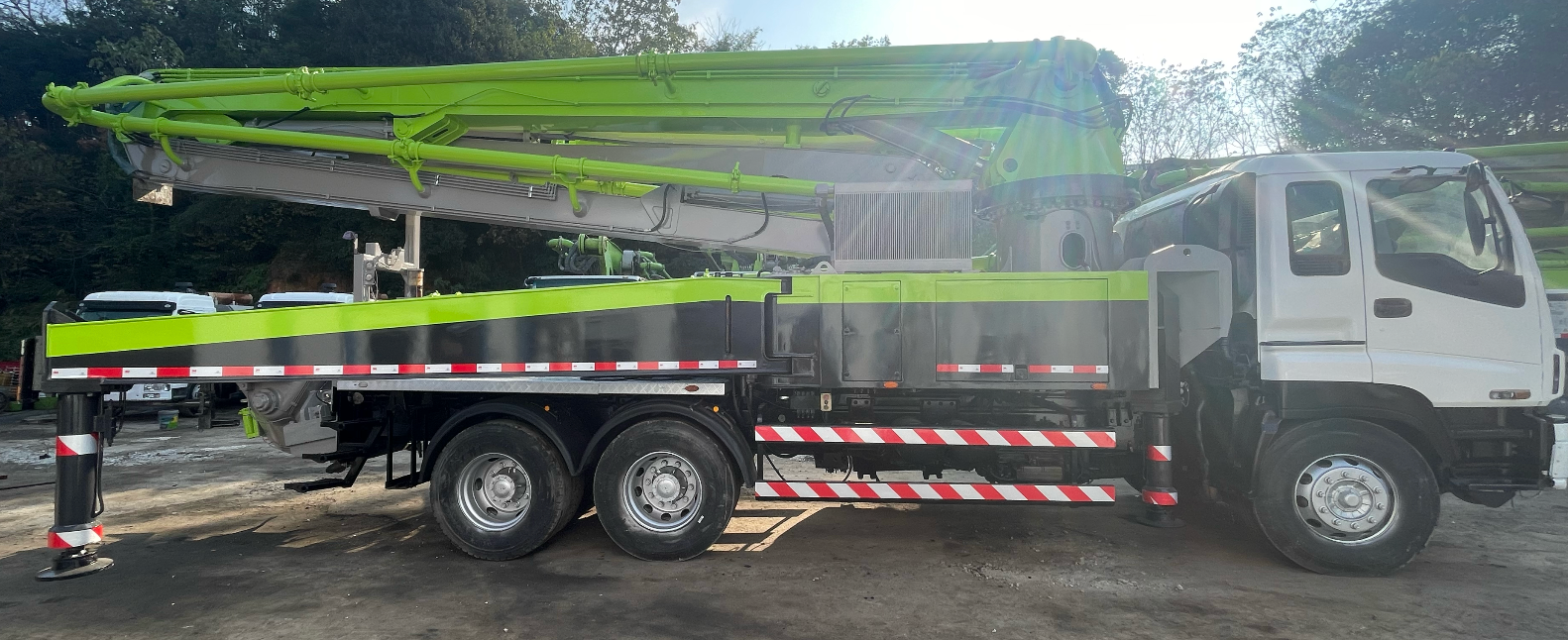

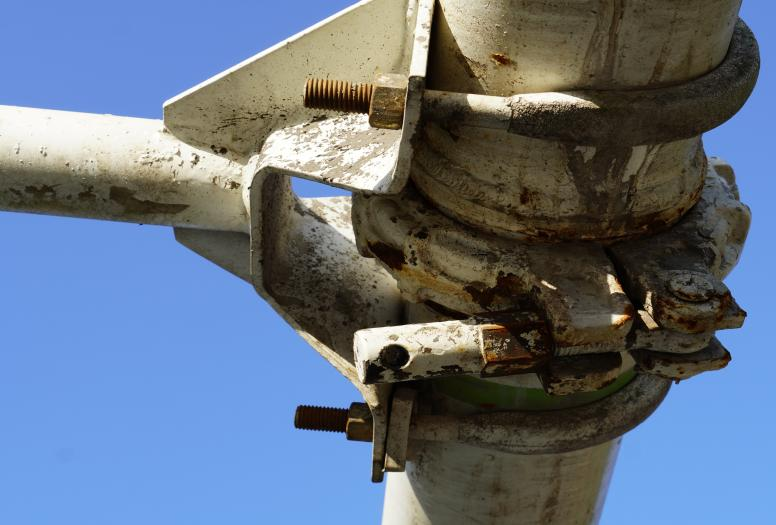

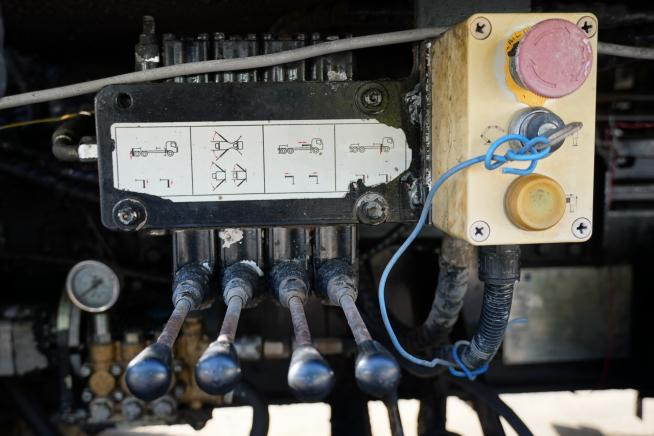

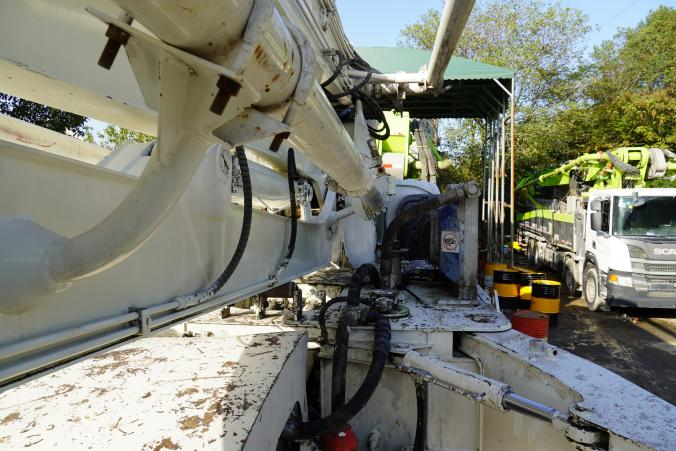

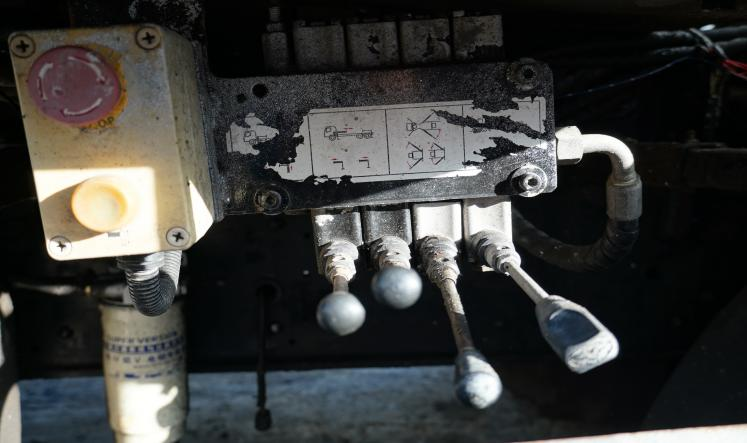

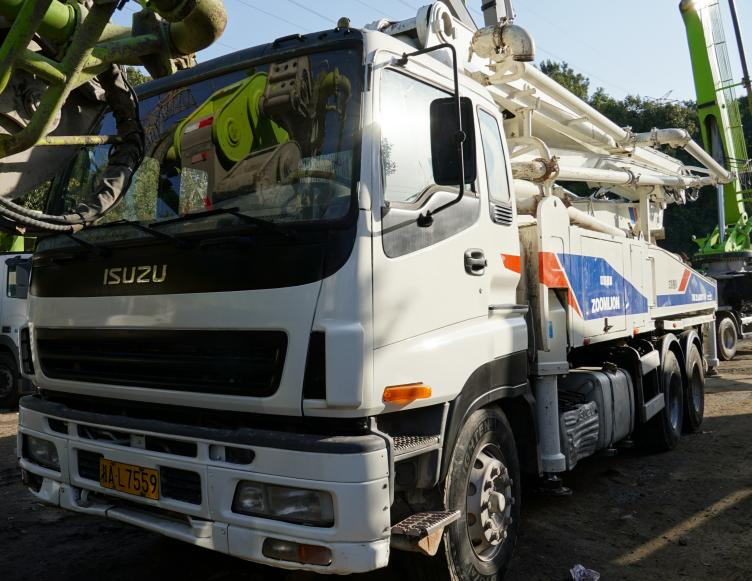

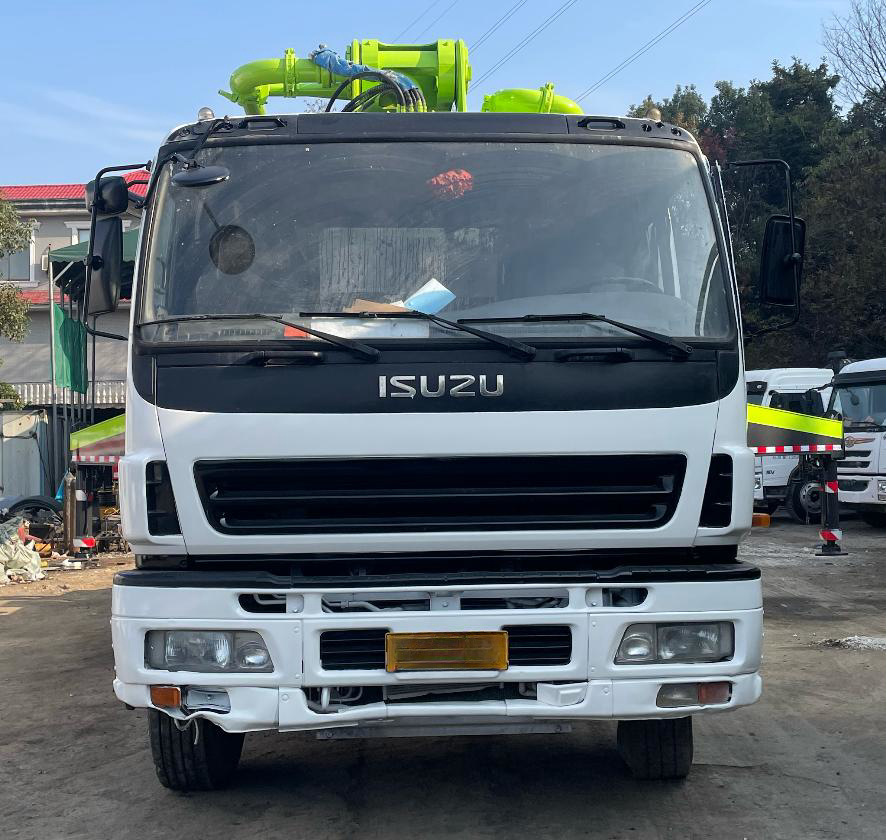

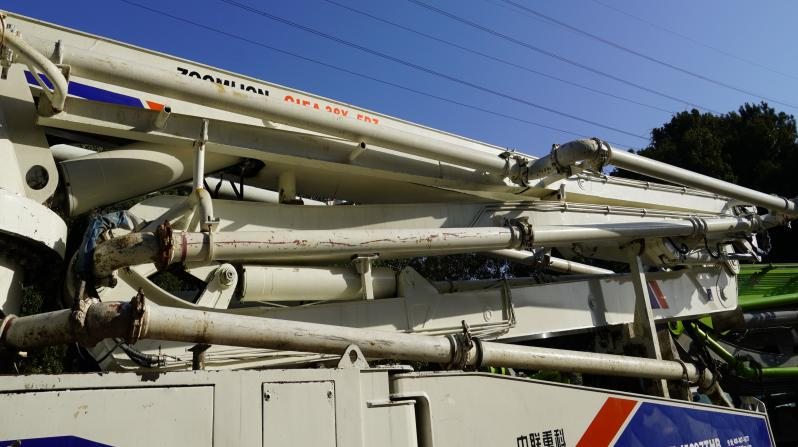

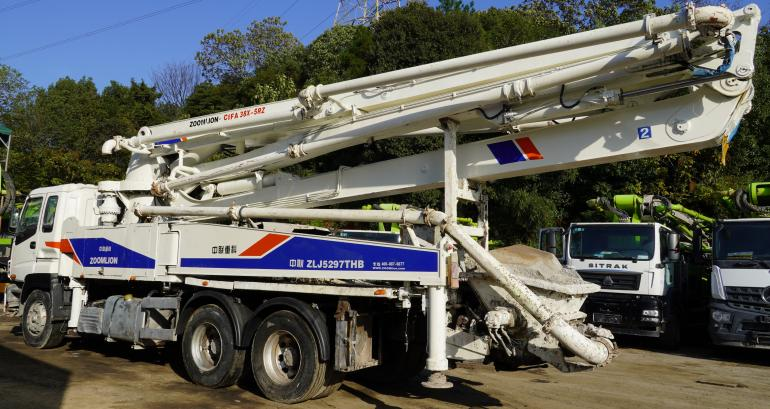

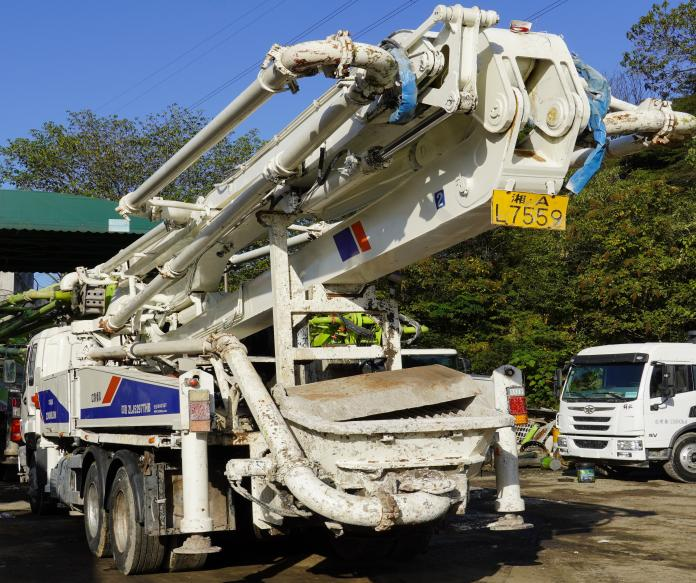

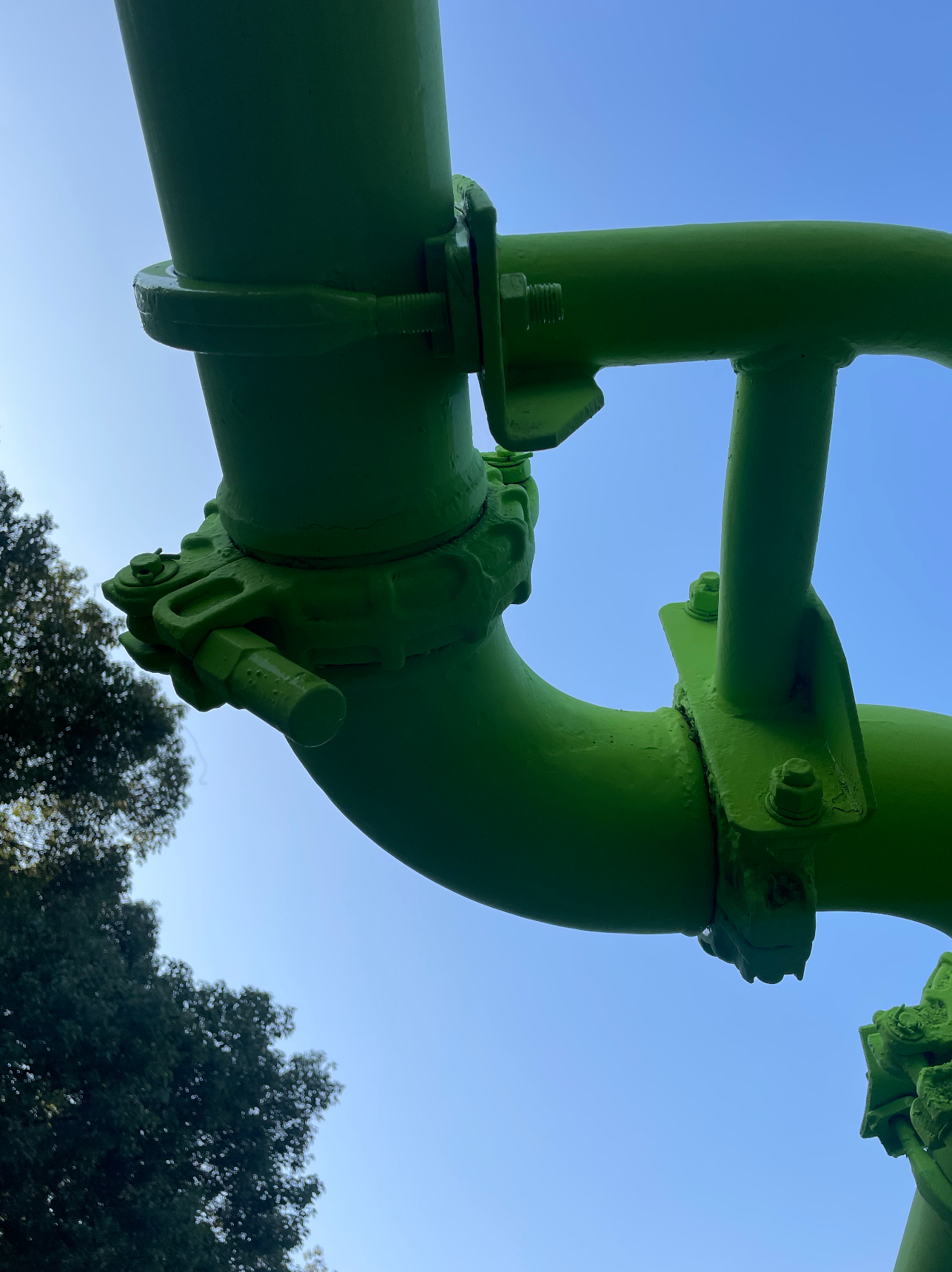

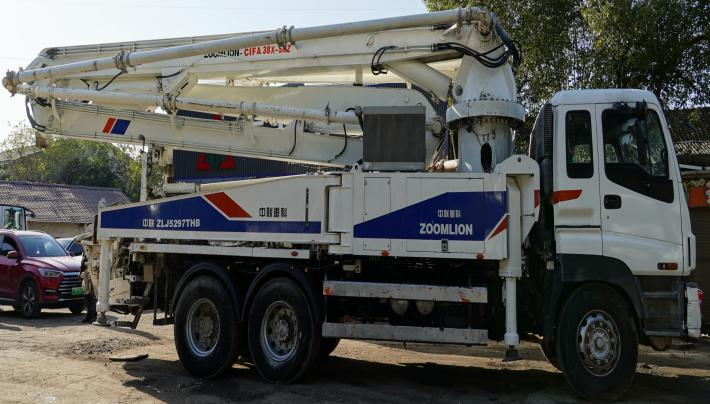

PART V. REAL PHOTOS


PART VI. VEHICLE MAINTENANCE TRACKING PHOTOS


Download the PDI reference:

EXPRESS REFERENCE. MAINTAINANCE TRACKING SERVICE ...


PART IV. SPECIFICATIONS

ModelZLJ5230THBTE 38X-5RZ
Pumping systemMax. Theor. outputm3/h100/60
Max. Theor. concrete output PressureMPa8/15
Rated working pressureMPa35
Pumping frequencymin- 125/14
Hopper capacityL550
Filling height
1540
Hydraulic system type
Open loop
Distribution valve
S valve
Oil cylinder dia. ×strokemmΦ150×1650
Concrete cylinder dia. ×strokemmΦ230×1650
Hydraulic oil cooling
Air cooling
Recommended concrete slumpcm12~23
Max. aggregate dimensionmm40
Placing boomStructure type
37X-5RZ
Placing depthm36.5
Horizontal distancem32.15
Placing depthm24.95
Slewing angle
±270 °
Boom number
5
The length of boom sectionmm7280/5920/5670/6880/6750
Sections folding angle
90°/180°/180°/240°/195°
Pipe diametermm125
End hose lengthmm3000
Min. height of opening placing boommm7790
Outriggers span (front×rear×side)mm6190mm×7740mm×6780mm
Chassis and the whole machineChassis model
ZZ5231N521GE1
Wheelbasemm5200
Engine type
MC07.31-50
Engine powerkW/(r/min)228/2300
Engine momentN.m/(r/min)1230 /(1200~1800)
Maximum displacementcc6870
Oil tank cubageL300
Tail gas exhaust standard
Euro. V
Total weightkg23000
Overall dimensionsmm9840×2530×3905
OthersLubrication mode
Automatic lubrication
Oil tank volumeL630
Control mode
Manual+remote control
Maximum water pressureMPa6
Water tank volumeL350
Pipe cleaning mode
Water cleaning/dry cleaning
