180m3/H Used Truck Concrete Pump 46.4m Concrete Pump Second Hand

PART I. INTRODUCTION OF KAMUJA

USTED TRUCK-MOUNTED CONCRETE PUMP Vertical Reach 63M & REFURBISH SERIVE 63X-7RZ

Hunan Kamuja Machinery & Equipment Co.,Ltd is founded by a group of passionate professionals who have an average of more than 10 years working experience in the construction machinery industry and established close relationship with numerous clients from all over the world.

We are a compnay that is committed to inspiring to create value through our products and service to customer and providing thorough solutions for both brandnew and used machines in the Construction, also Industrial logistics sectors.

We offer comprehensive service for the used construction machineries, such as Pre- Order Inspection, all kinds of reburbishing services that meet different customer’s requirements, Pre-Delivery Inspection, Spare Parts, On-line Traning & Instruction

Service, Optional On-site Service.

With the commitment to provide quality and reliable new machines, KAMUJA carefully select the vendors and work closely with those who have international background and reputation. KAMUJA brand new forklift and generators are flexible for customization according to our partners and customers requests.

We are an authorized ventor of one of the leading Chinese tower crane manufacturers who started the first tower crane production since 1958, and enjoyed worldwide reputation. Together with our advanced factory, KAMUJA team will provide strong supports to the customers to achieve safe and

cost-effective construction for their projects.

Qualification




PART II. CONCRETE MACHINERY EXPERTISE

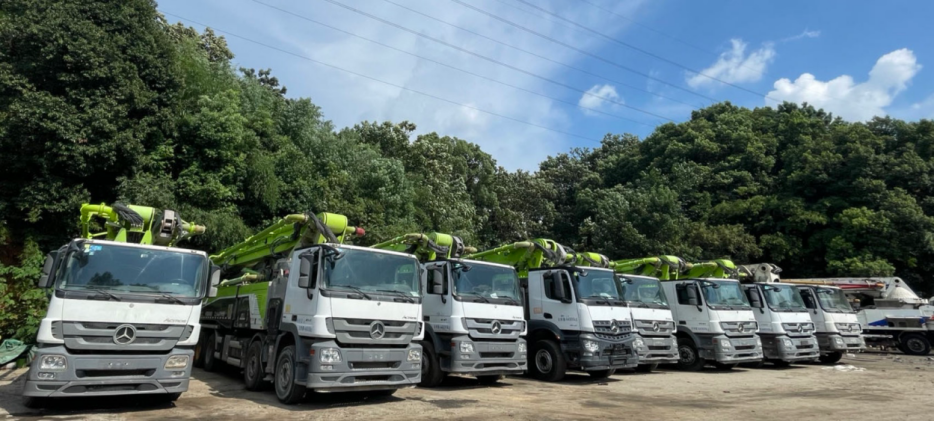

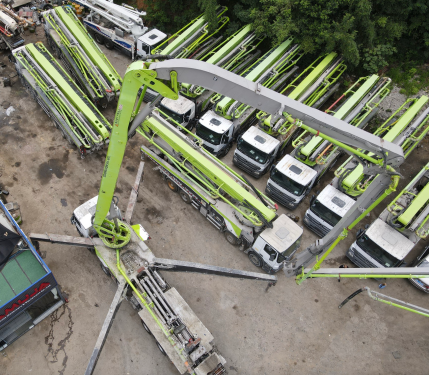

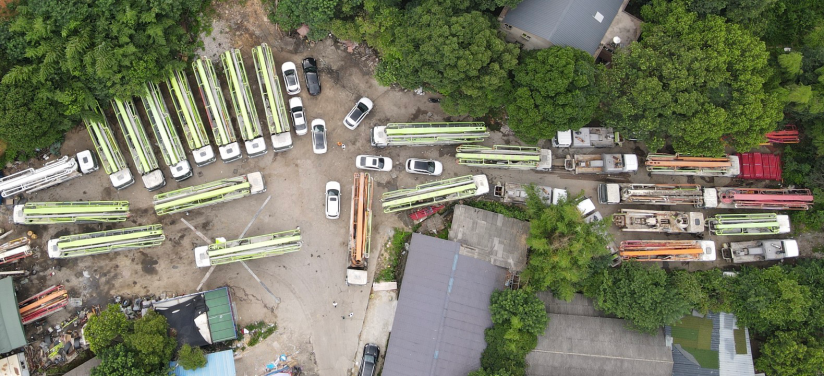

★ KAMUJA has a specialized team and warehouse to refurbish China Made Concrete Machinery, among the most famous brand, Zoomlion and Sany. We normally have in stock under own property various models with different year of manufacturing, ready for sale as origin all statues or furnished.

★ Most Commercial Models and Configurations:

- 37m/38m Zoomlion w/. ISUZU, Sinotruk Chassis, EURO III

- 40m Zoomlion w/. FAW Chasis, EURO V

- 43m/47m Zoomlion w/. FAW, ISUZU, Mercedez Benz Chasis, EURO III, V.

- 49m Zoomlion w/. Merdedez Benz Chasis, Sany w/. own brand chassis, EURO V

- 52m Zoomlion w/. Merdedez Benz Chasis, Sany w/. own brand chassis, EURO III, V

- 56m Zoomlion w/. Scania, Merdedez Benz Chasis, Sany w/. own brand chassis, EURO III, V

- 62m/63m Zoomlion and Sany w/. Scania, Mercedez Benz chassis, EURO III,IV

★Year of manufacturer: 2011-2021

★ Refurbish Class: Premium, Medium, Standard.

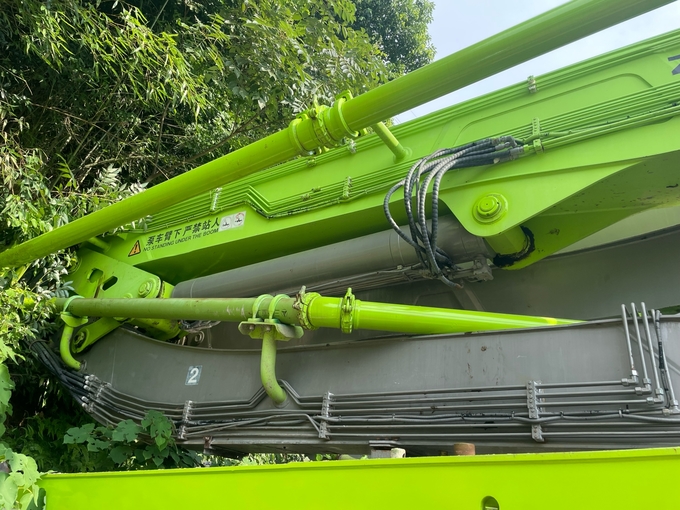

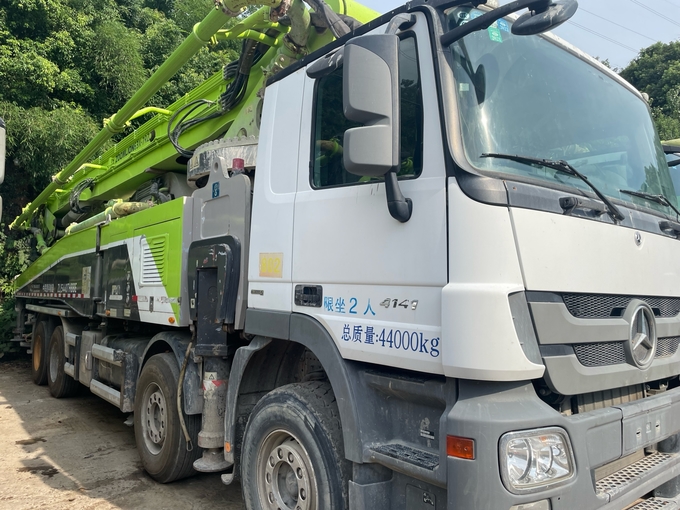

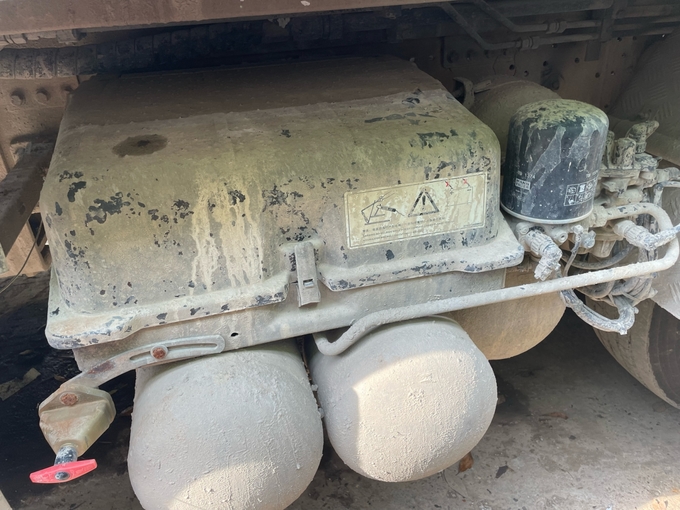

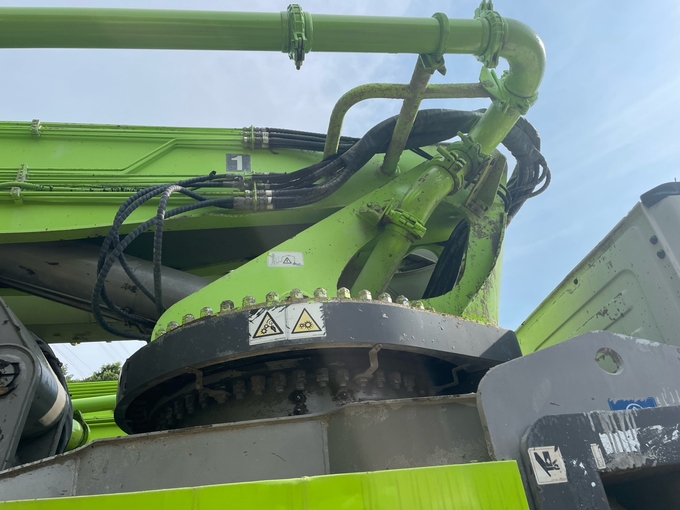

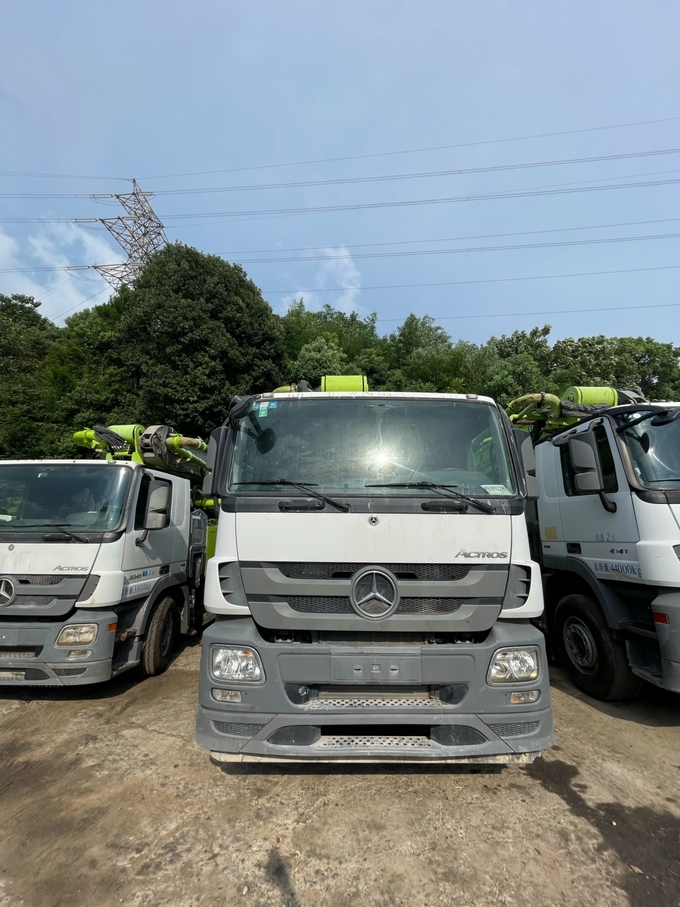

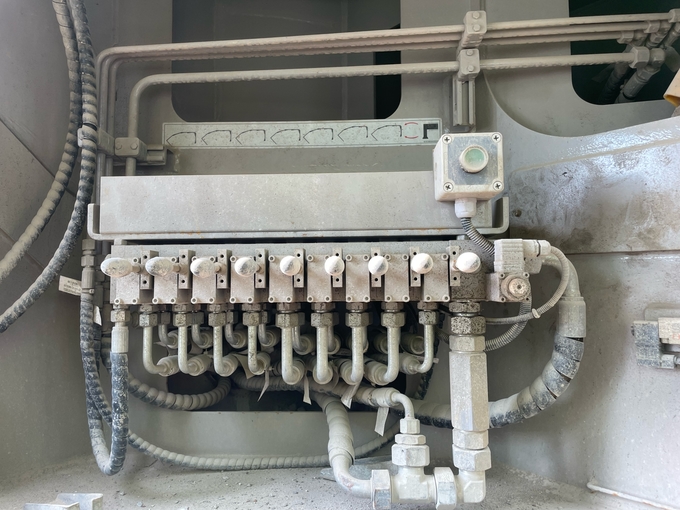

PART V. REAL PHOTOS


PART IV. SPECIFICATIONS

ModelZOOMLION 63X-7RZ
Pumping systemMax. Theor. outputm3/h180
Max. Theor. concrete output PressureMPa11.3
Rated working pressureMPa42
Pumping frequencymin-126
Hopper capacityL600
Filling height
1540
Hydraulic system type
Closed loop
Distribution valve
S valve
Concrete cylinder dia.×strokemmΦ260mm×2100mm
Hydraulic oil cooling
Air cooling
Recommended concrete slumpcm12~23
Max. aggregate dimensionmm40
Placing boomStructure type
63X-7RZ
Placing heightm62.1
Horizontal distancem56.9
Placing depthm46.4
Slewing angle
±270°
Boom number
7
The length of boom sectionmm11590/8230/8220/9330/9260/4970/6500
Sections folding angle
90°/180°/180°/180°/180°/235°/90°/120°
Pipe diametermm125
End hose lengthmm3000
Min. height of opening placing boommm15830
Outriggers span (front×rear×side)mm12250×12820×11660
Chassis and the whole machineChassis model
ZZ5446V516HE1
Wheelbasemm1950+4500+1400
Engine powerkW/(r/min)324/1900
Engine momentN.m/(r/min)1900/1000-1400
Tail gas exhaust standard
CN Ⅲ
OthersLubrication mode
Automatic lubrication
Oil tank volumeL800
Control mode
Manual+remote control
Maximum water pressureMPa7
Water tank volumeL400
Pipe cleaning mode
Water cleaning/dry cleaning

Working scope fig.
