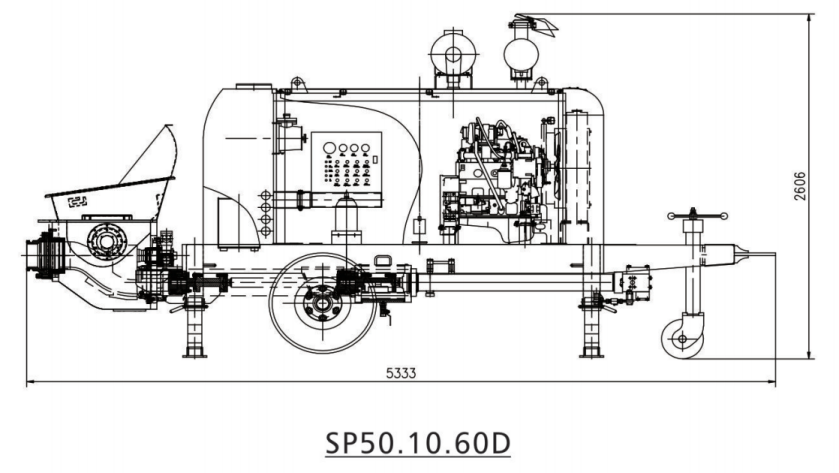

Staionary concrete pumpSP50.10.60D

INTRODUCTION

The Stationary Concrete pump is mainly use for Expressway, Road, Bridge, Light Rail and Private house construction scenarios.

 FEATURES

① HYDRAULIC SYSTEM

ONE-BUTTON TWIN PISTON RETURN

With one-button operation, both of the pistons can be automatically returned into the water tank, which effectively shortens the time for replacing the piston and makes maintenance easier.

HYDRAULIC INTEGRATION BLOCK

It adopts hydraulic integrated valve group, compact design, Concise oil passage, Simple and reliable connection of hydraulic pipeline, Reduce the system fluid resistance keep the system in reasonable temperature.

② PUMPING SYSTEM

STRONG PUMPING SYSTEM

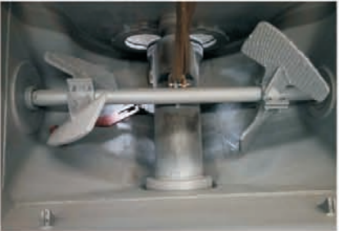

Advantages of high-pressurelarge-displacement conveying, unique design of mixing blades small mixing dead angles, strong design and strong suction performance, suitable for C15-C70 concrete pumping.

DUAL DRIVE LUBRICATION SYSTEM

Equipped with a dual-drive lubrication pump. which combines manual and fully-enclosed automatic re-lubrication technology, Effectively ensure the lubrication performance of moving parts and extends the service life.

COMMUTATION BUFFER TECHNOLOGY

Adopt the new generation of flexible control technology to minimize the hydraulic shock, Reduce noise and improve pumping stability.

③ POWER SYSTEM

 HIGH-END ENERGY SAVING TECHNOLOGY

Using the latest algorithm to optimize the engine power matching, The pumping efficiency increases by up to 15%, and the fuel consumption reduces by up to 10%.

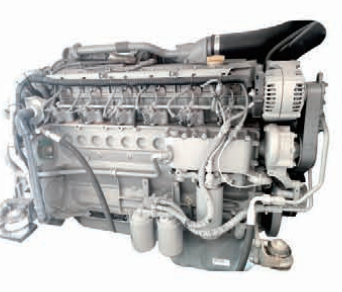

ENGINE

Adopt famous international brand (DUETZ or COMMINS), big output power and torque not only guarantee the powerful working and complete combustion, also reduce the emissions.

④ ELECTRICAS SYSTEM

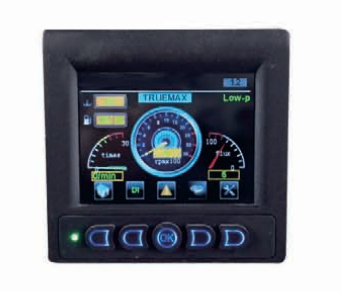

INTELLIGENT ELECTRIC CONTROL SYSTEM

A) EQUIPMENT MANAGEMENT

· DYNAMIC MONITORING

Equipped with a powerful human-computer interaction system, Real-time feedback of equipment operating conditions.

· SAFE OPERATION

Set multiple security protection modes to prevent misoperation and damage to equipment.

· SELF-DIAGNOSIS

Real-time monitoring of equipment status, effectively improving troubleshooting time by 70%.

B) DATA ANALYSIS

· MAINTENANCE TIPS

Prompt maintenance tips according to working hours and pumping volume.

C) INFORMATION MANAGEMENT

· DATA RECORDING

Record running time of core components such as pumps and engine.

· FUEL CONSUMPTION MANAGEMENT

You can view daily and unit pumping fuel consumption.

EXCELLENT AUTOMATIC PROTECTION SYSTEM

A) OVERLOAD PROTECTION

When the engine is overloaded or over-speed, the system will automatically stop working to avoid damage to the engine and oil pump.

B) REAL-TIME MONITORING OF DIESEL

Automatic warning, when the fuel is insufficient, To ensure that the engine will not be damaged.

⑤ EXTREME WEAR-RESISTING TECHNOLOGY PROJECT CASE

DELIVERY CYLINDER

The inner layer is plated with chrome and its service life can reach to above 100，000m3 due to the good wear resistance.

GLASS PLATE/CUTTING RING

Made of rigid alloy with special process,extending service life.
