FEATYRES
① Three arms design'*R" folding, The machine is fully driven by hydraulic, and can slew flexibly with wide working range
② Two modes of operation: radio remote control and cable remote control, easy to operate.
③ The total weight is light, customer can lifting it easily on the job site.
④ The bottom frame is inclined outrigger structure, the working state is table and fixed.

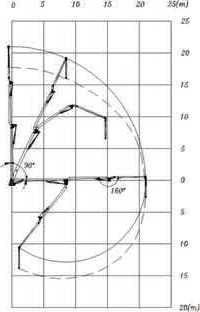

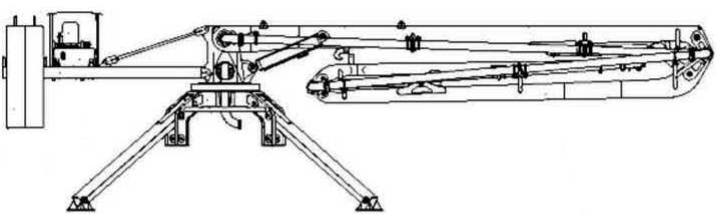

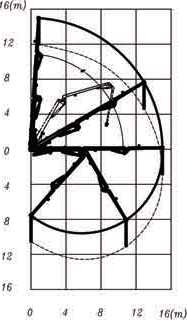

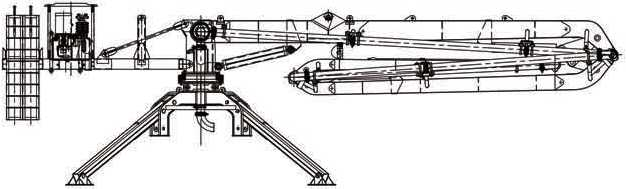

STRUCTURE AND SCOPE OF WORK
PB17B?3R?II [HG17B-3R-II1
PB17B?3R?II [HG17B-3R-II1
HG17B-3R-II1
HG21B-3R-II1
SPECIFICATIONSS
ITEMS | UNITS | HG17B-3R-II | HG21B-3R | ||
Performance | Max Radius of Placing Boom | m | 17 | 21 | |
Free standing Height | m | 2.7 | 3 | ||
Slewing Range | / | 360° | 360° | ||
Circumstance Temperature | °C | -20-55 | -20-55 | ||
Power(subject to Customer) | / | 380V/50HZ | 380V/50HZ | ||
Delivery Pipeline Diameter | mmxmm | 0133x4.5 | 0)133x4.5 | ||
Delivery Hose Diameter | "xmm | 5" x 3000 | 5"x3000 | ||
Boom | 1 st Section | Length | m | 7.1 | 8.4 |
Articulation | / | 0?86° | 0?90 | ||
2nd Section | Length | m | 5.5 | 6.9 | |
Articulation | / | 0~180° | 0~180。 | ||
3rd Section | Length | m | 4.5 | 5.7 | |
Articulation | / | 0°~180° | 0。~180。 | ||
Type of Hydraulic Oil | Circumstance Temperature 5°C-55°C | °C | Hm46 Anti-wear hydraulic oil | ||
Circumstance Temperature -20°C-5°C | °C | Hm32 Anti-wear hydraulic oil | |||
Motor | Power | kW | 5.5 | 7.5 | |
Hydraulic Pressure | MPa | 25 | 28 | ||
Mode of Slewing | / | Turbo Worm Drive | Gear Slewing | ||
Application scenario | / | Mobile | |||
Total Weight | kg | 6500 | 9150 | ||
Max Lifting Unit | kg | 1520 | 5850 | ||
*The voltage frequency can be customized according to customer's requirement | Configuration parameters are subject to change without notice | ||||
